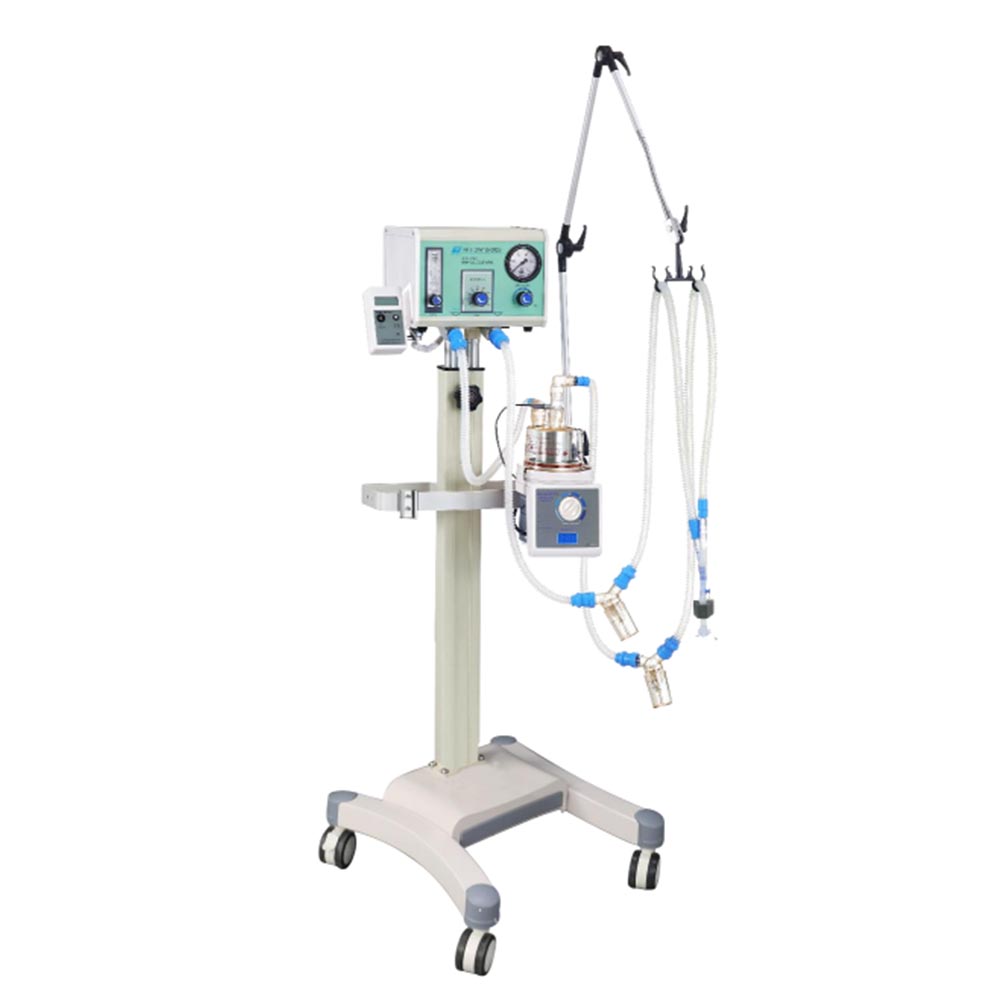

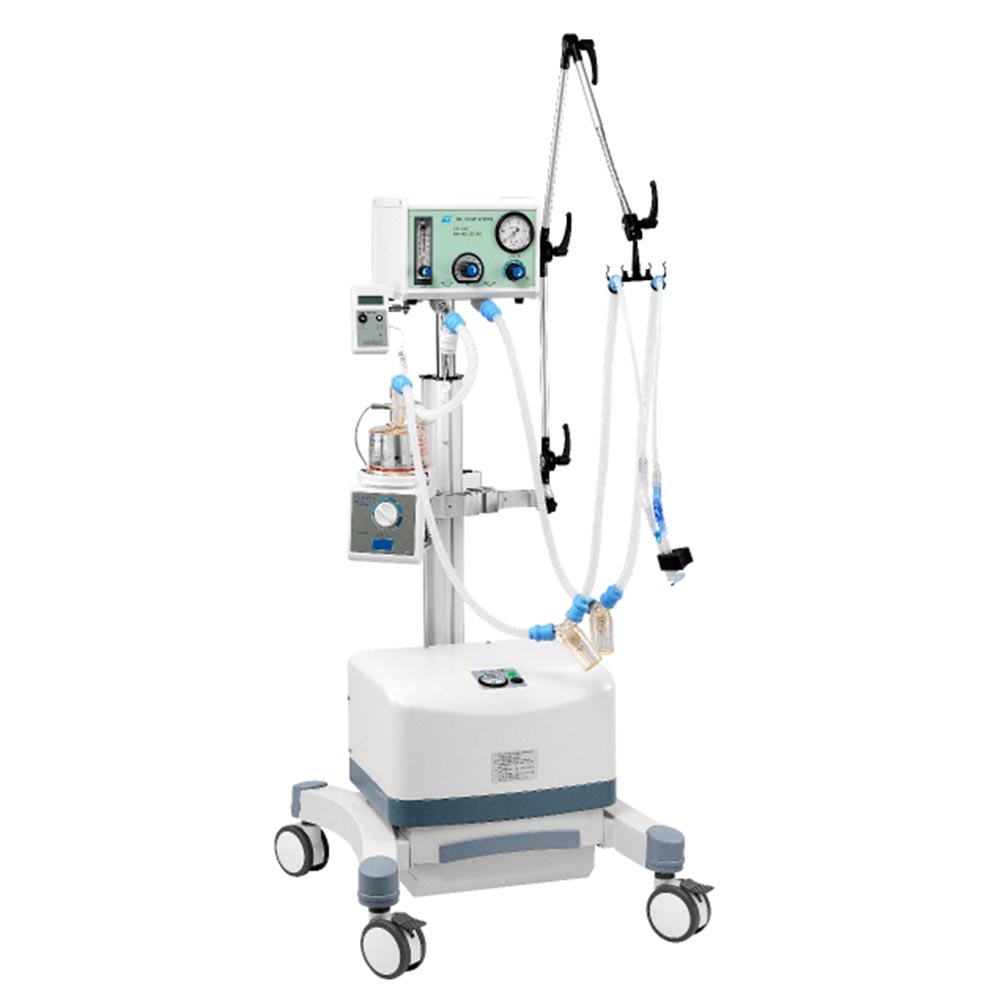

bubble CPAP with air compressor for infant model AD-II

*All in one design

Integrated with humidified gas source,mechanical pressure control system,

oxygen analyzer and patient interface.

The O2% can be adjusted manually by O2% knob.

The flow can be adjusted manually by flowmeter knob.

The CPAP pressure can be controlled manually by pressure knob.

Oxygen Analyzer is portable and compact designed with precision performance.

The air compressor PN-3000 can be removed. This compressor can match with various

Ventilator, Anesthesia Machine, CPAP.

Model	AD-II
FiO2	21%-100%
Flow	2-28LPM
CPAP pressure	0-20cm H20
Pressure gauge	0-25 cmH20
Noise	<55dB(A)
Power	ac.220V/110V,50Hz~60Hz
Gas source	Air/Oxygen, 0.3Mpa~0.4Mpa(3~4bar)
Alarm	When the Pressure difference of gas supply is more than 0.1 MPa, the alarm activates.
