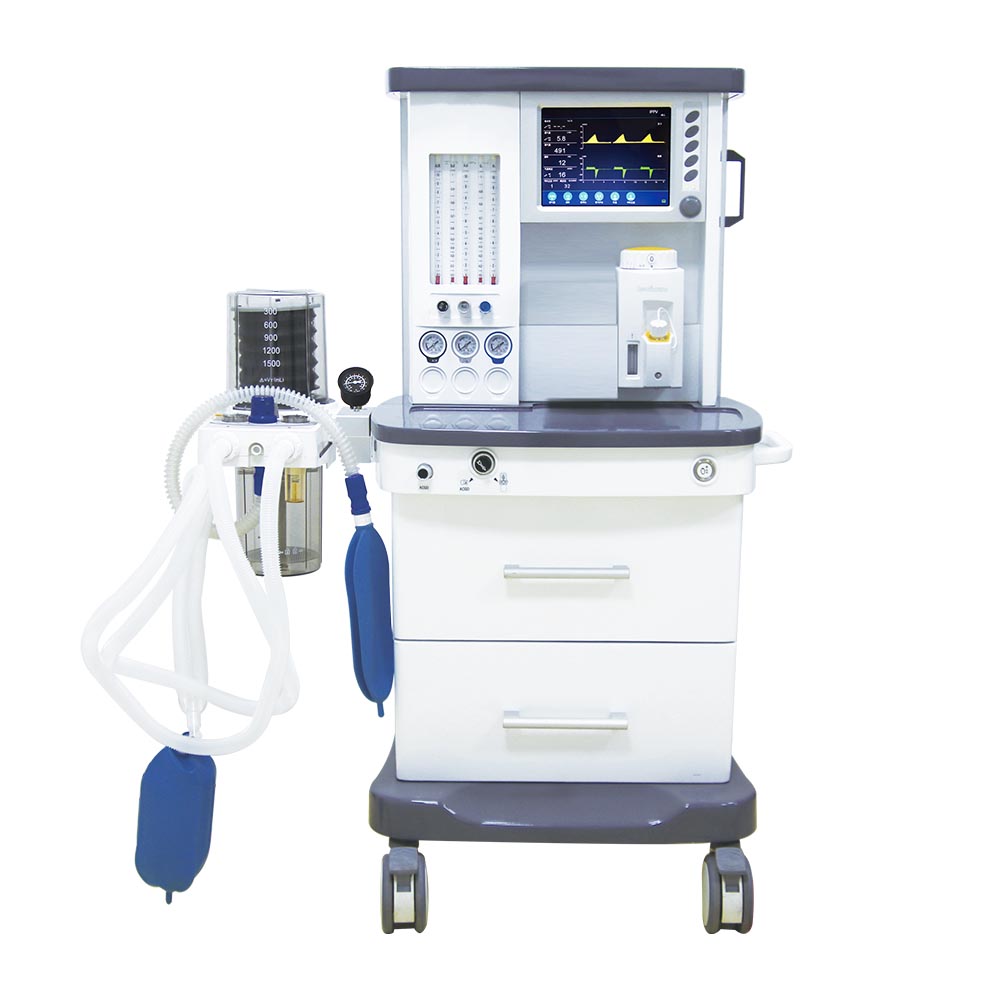

6100 high-end anesthesia machine for surgery

Features

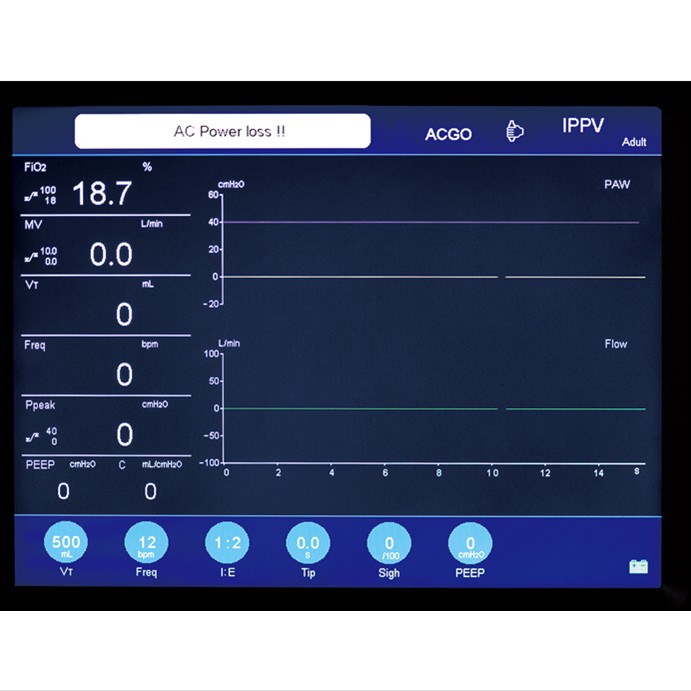

1. 10.4″ TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.

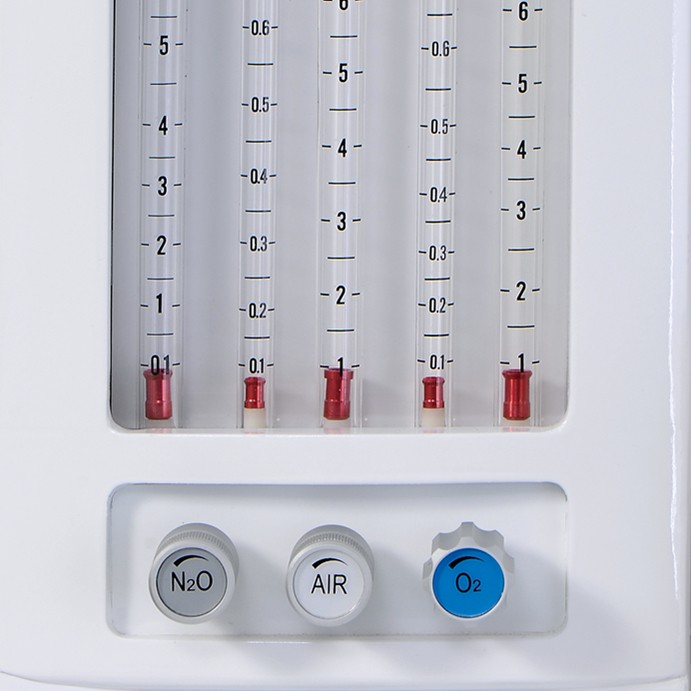

2. High precision flow meter, instantly know the fresh gas flow to your patient.

3. Integration breathing circuit design, ensure easy operating and keep tidy.

4. Multiple working modes such as volume control and pressure limit, adapt to wide range patient.

5. Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.

6. Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;

7. Real-time pressure-time, flow-time loop graphics and high precision O2 concentration detection function included.

8. Vital sign monitor and Anesthetic gas monitor are optional.

9. ETCO2 module is optional.

S6100	Specifications
Ventilation modes:	IPPV; A/C; PCV; SIMV; SIGH,MANU
Ventilator parameter ranges
Flow meter	O2(0.1-10L/min)
	N2O(0.1-10L/min)
	AIR(0.1-10L/min)
Rapid oxygen supply	35L/min-75L/min
Tidal volume(Vt)	0, 20 mL ~ 1500 mL
Frequence(Freq)	1bpm ~ 100 bpm
I/E	4:1~1:8
PEEP	0cmH2O ~ 30 cmH2O
Pressure triggering sensitivity(PTr)	-20 cmH2O ~ 0 cmH2O(Based on PEEP)
Flow trigger sensitivity (FTr)	0.5 L/min ~ 30 L/min
Pressure control (PC)	5 cmH2O ~ 60 cmH2O
SIGH	0(off) 1/100 ~ 5/100
Apnea Ventilation	OFF,5 s ~ 60 s
Pressure Limit	20 cmH2O ~ 100 cmH2O
Monitored Parameters
Frequence(Freq)	0 /min ~ 100 /min
Tidal volume(Vt)	0 mL ~ 2000 mL
MV	0 L/min ~ 100 L/min
Oxygen concentration	15 % ~ 100 %
Graphical display:
P-T(pressure – time)
F-T(flow – time)
P-V loop (pressure – volume loop)
Alarm and protection
The AC power failure alarm	Power failure or no connection
Internal battery backup low voltage alarm	<11.3±0.3V
No tidal volume	≤5Ml within 6s
High oxygen concentration alarm	19%-100%
Low oxygen concentration alarm	18%-99%
High Airway pressure alarm	20cmH2O-100cmH2O
Low Airway pressure alarm	0cmH2O-20cmH2O
High Minute Volume alarm	Adult(5L/min-20L/min)
Low Minute Volume alarm	Paed(1L/min-15L/min 0-10L/min)
Continuous Pressure alarm	(PEEP+1.5kPa) over 16s
Suffocation warning	5s-60s no spontaneous ventilation
The maximum limited pressure	<12.5 kPa
Fan error	Show on screen
Oxygen deficit	Show on screen
Working conditions
Gas source	O2,N2O,AIR
Pressure	280kPa-600kPa
Voltage	100-240V
