Description
Technical Specification:
*10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle；
*Menu operation system, with different languages according to requirement including Spanish,
English, French, Russian and Portuguese；

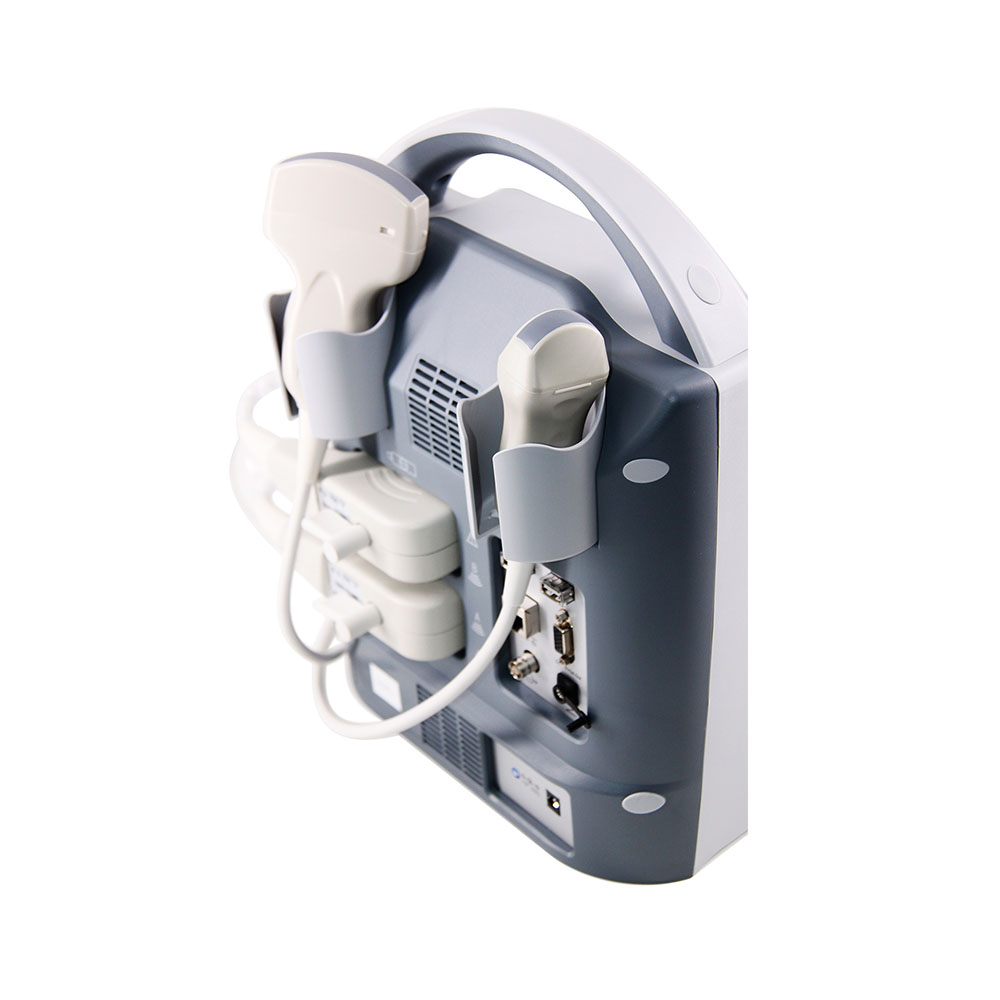

*Two probe sockets, auto-identify different optional probe；
*Body marks：1.General 2. Bovine 3.Canine 4.Equine 5.Feline 6.Cardio 7. Swine, total 27 kinds
body marks indicating probe position；
*Display mode：B、2B、4B 、B/M、M ；
*Adjustable depth: 10 grades, max depth to 236mm；
*Gain：0～127dB；
*Contrast：27～90dB；
*Gray scale：256；
*8 steps intelligent TGC；
*8 kinds pseudo colors；
*Image storage: 4G hard disk to permanently store about 5000 frames images；
*Cine loop：256 frames；
*Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)；
*the gravel software package with real-time position line measurement
*Normal measurement: Distance, circumference, area (Trochoid or ellipse), volume, etc. Cardio measurement：Depth, slope, heart rate, cycle；
*OB measurement including: Bovine, Canine, Equine, Feline, Ovine, Camels and Swine and
pre-gestational age birth；
*Other measurement: pig’s meat factor measurement；
*OB report function；
*One-key store: concise and practical;
*One-key review：fast, practical image review function;
*One-key Print；
*One-key Transfer the current frozen image to net workstation to complete its image text report and
print directly;
*Concise and practical, easy operation. The system includes network workstation to complete data &
report management (You don’t need to invest more to buy extra ultrasound working station)；
*Unique One-key-light keyboard function for black room use;
*Display brightness adjustable；
*Dual TV output: PAL/NTSC, can connect video printer when necessary；
*Power supply：100-240V～ 1.2-0.6A frequency：50-60Hz；
*Power supply adaptor output：DC12.8V 3.0A；
*Main unit weight：4.5kg（without accessories）；
*Main unit dimension：256×150×326mm（L×W×H）；
